HUAWEI PAC600S12 EB 600W AC POWER MODULE(BACK TO FRONT POWER PANEL SIDE EXHAUST)
8.663,71 TL
Kategori
Marka
Stok Kodu
210246330
Garanti Süresi
24 Ay
Fiyat
172,24 USD + KDV
*2.459,63 TL den başlayan taksitlerle!!

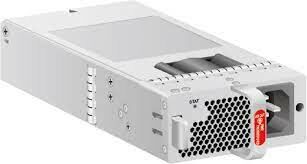

Appearance of the PAC600S12-CB
Version Mapping
Table 4-182 Mappings between PAC600S12-CB and product models
| Product | Product Model | First Supported Version |
|---|---|---|
| USG6650E | USG6650E-AC (02351YRY-001) | V600R007C20SPC300 |
| USG6650E | USG6650E-AC (02351YRY-002) | V600R007C20SPC600 |
| USG6585E | USG6585E-AC (02353ADA) | V600R007C00 |
| USG6525E | USG6525E-AC (02353AFX) | V600R007C00 |
| USG6635E | USG6635E-AC (02352RQD) | V600R007C00 |
| USG6625E | USG6625E-AC (02352RQN) | V600R007C00 |
| USG6615E | USG6615E-AC (02352RQL) | V600R007C00 |
| USG6630E | USG6630E-AC (02352FQA-001) | V600R007C20SPC300 |
| USG6630E | USG6630E-AC (02352FQA-002) | V600R007C20SPC600 |
| USG6565E | USG6565E-AC (02353AEJ) | V600R007C00 |
| USG6620E | USG6620E-AC (02352HMF-001) | V600R007C20SPC300 |
| USG6620E | USG6620E-AC (02352HMF-002) | V600R007C20SPC600 |
| USG6555E | USG6555E-AC (02353AEK) | V600R007C00 |
| USG6610E | USG6610E-AC (02352HMD-001) | V600R007C20SPC300 |
| USG6610E | USG6610E-AC (02352HMD-002) | V600R007C20SPC600 |
| USG6655E | USG6655E-AC (02352RPS) | V600R007C00 |
Panel
Figure 4-154 Panel of the PAC600S12-CB
|
1. Power status indicator |
2. Power receptacle |
3. Clip hole |
Table 4-183 Indicators on the PAC600S12-CB
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| STAT | Power status indicator | Green | Steady on | The output of the AC power module is normal. |
| - | Off |
|
Table 4-184 Ports on the PAC600S12-CB
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| Power receptacle | - | Connects the C13 plug of the AC power cable. For details, see AC Power Cables. | - |
| Clip hole | - | The hole is used to install the power cable clip, which is used to bind and fix the power cable. The power cable clip is installed before shipment. | - |
Functions and Features
Table 4-185 Functions and features of the PAC600S12-CB
| Functions and Features | Description |
|---|---|
| Input undervoltage protection | Stops power output and automatically restores power output after the input voltage becomes normal. |
| Input overvoltage protection | Stops power output and automatically restores power output after the input voltage becomes normal. |
| Input overcurrent protection | Stops power output and does not automatically restore power output after the input current becomes normal. |
| Output current limiting protection | Intermittently provides output and automatically restores normal output after the output current falls within a normal range. |
| Output overvoltage protection | Intermittently stops output and automatically restores output after the overvoltage condition is removed. |
| Overtemperature protection | When the temperature of the power module reaches a preset threshold, the power module stops power output and will automatically restore power output after the temperature drops back to the normal range. |
| Heat dissipation | The heat dissipation is provided by the fan of the power module. |
| Hot swap | The device has 1+1 power module redundancy. You can hot-swap a power module without interrupting device operation. |
Technical Specifications
Table 4-186 Technical specifications of the PAC600S12-CB
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 39.6 mm x 90 mm x 214.5 mm (1.56 in. x 3.54 in. x 8.45 in.) |
| Weight without packaging [kg(lb)] | 0.95 kg (2.09 lb) |
| Rated input voltage [V] | 100 V AC to 240 V AC (50 Hz/60 Hz) |
| Input voltage range [V] | 90 V AC to 290 V AC (47 Hz to 63 Hz) |
| Maximum input current [A] | 8 A |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 50 A |
| Rated output power [W] | 600 W |
| Hot swapping | Supported |
| Type of power cables | C13 |
